Full Flap Bottom vs Partial Flap Bottom Bulk Boxes

Choosing between full flap bottom and partial flap bottom Gaylord boxes is a critical decision that impacts your entire supply chain. This choice affects more than just costs—it influences operational efficiency, environmental sustainability, and long-term business success.

Market Overview: Full flap bottom containers cost $25-$60 for new units and offer exceptional strength for heavy-duty use, supporting up to 2,500 pounds. Partial flap bottom containers are more economical at $5-$18 for used units, though they require slip sheets adding approximately $1.00 each for enhanced stability.

Current Market Pricing (June 2025)

Recent market data shows average prices for used Gaylord boxes have stabilized:

• Grade A: $16.80
• Grade B: $13.40
• Grade C: $11.10

This trend indicates price stabilization in the industry after years of volatility, affecting efficiency, shipping costs, storage utilization, and sustainability across manufacturing, recycling, e-commerce, and agriculture.

Advanced Gaylord Box Technology and Manufacturing

Historical Foundation and Design Principles

Gaylord boxes, bulk boxes, pallet boxes, and octabins represent critical innovations in corrugated packaging, with design principles tracing back to 1871 patents. These large-capacity containers are engineered from corrugated cardboard featuring multiple layers of fluted sheets bonded to flat liner boards, achieving an optimal balance of:

• Strength
• Weight efficiency
• Material optimization

Manufacturing Process Excellence

The sophisticated manufacturing process begins with pulp preparation:

Debarking tree logs

Chipping into small pieces

Cooking to create pulp mixture

Bleaching and cleaning

Pressing and drying to form paper

Corrugation technology employs specialized machines that process large paper rolls heated to 200°C, making the material pliable. The process involves:

• Adhesive application to corrugation tips
• Outer liner attachment
• Secondary adhesive application
• Final liner bonding

This creates complete corrugated cardboard sheets designed for lightweight yet robust containers supporting loads from 300 to 5,000 pounds depending on construction specifications.

Standardization and Compatibility

Most Gaylord boxes conform to standard pallet dimensions:

• 40" × 48" (most common)
• 45" × 45"

Height variations range from 36 to 50 inches, optimizing storage and transportation requirements. These containers feature self-closing bottom flaps and knock-down design, enabling space-efficient storage when empty.

Wall Construction Specifications and Load Capacity

Tiered Strength Approach

Gaylord boxes utilize a tiered wall construction methodology where each additional layer significantly enhances load capacity and durability:

Double Wall (2-Ply) Construction

• Load capacity: Up to 1,000 pounds
• Design: BC flute construction with inner B flutes for cushioning and outer C flutes for stacking strength
• Cost: Approximately $10 (most economical option)
• Applications:
  • Paper recycling
  • Waste collection
  • Electronics recycling
  • Lightweight metal collection

Triple Wall (3-Ply) Construction

• Featured model: HPT-41 Gaylord Box
• Unique design: Rectangular base with octagonal third wall for enhanced support
• Load capacity: Up to 1,100 pounds (standard 48" × 40" × 36")
• Benefits: Even weight distribution and superior stacking strength

Industrial Grade (4-Ply and 5-Ply)

• Five-wall capacity: Up to 5,000 pounds
• Common dimensions: 48" × 40" × 40", 48" × 38" × 41", 47" × 44" × 41"
• Packaging: 25 boxes per skid
• Transportation: 450-500 five-ply Gaylords per 53" dry van

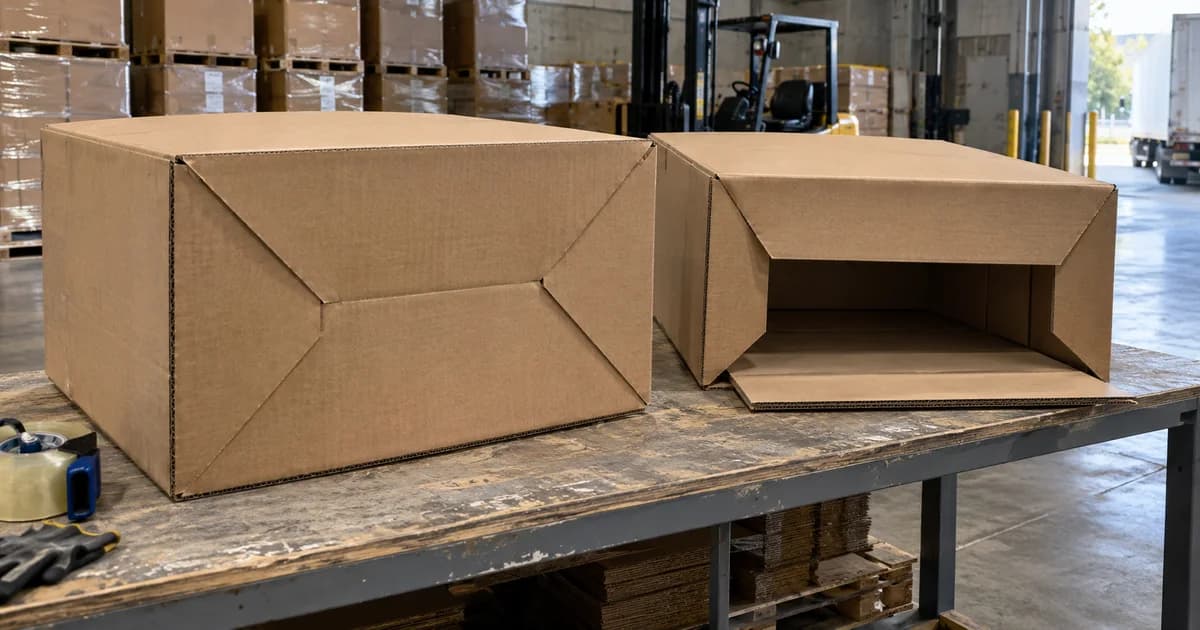

Full Flap Bottom Gaylord Boxes: Engineering Excellence

Superior Structural Design

Full flap bottom construction provides a solid foundation capable of supporting heavy loads without requiring additional materials. This engineering approach focuses on:

• Overlapping flaps for even weight distribution across the base
• Elimination of stress points preventing failure under heavy loads
• Center-meeting flap configuration secured with multiple packing tape strips
• Enhanced stability during transport and storage

Engineering Advantages

Full flap bottom construction offers distinct engineering benefits, particularly for irregularly shaped items or heavy-load applications:

• Prevents point loading that can puncture or deform partial flaps
• Ideal for: Machinery parts, bulk hardware, industrial materials
• Puncture resistance: 2-3 times stronger than single-layer alternatives
• Eliminates slip sheet requirements through interlocking flap design

Durability Advantage: Most two-wall Gaylord boxes feature full flap bottoms, enhancing durability for heavy loads while reducing spillage risk and shipping damage. These containers support multiple shipping cycles, providing long-term cost savings.

Performance Applications

Full flap bottom containers excel in:

• Retail and thrift store operations (donated clothing, toys)
• Heavy machinery shipping
• Industrial component transport

Load Distribution and Structural Performance

Testing and Performance Standards

Testing data demonstrates that full flap bottom configurations maintain structural integrity even under uneven loading conditions—critical for real-world applications where perfect load distribution isn't always achievable.

Stacking Guidelines for Pallet Loads:

• Bottom Box Over 750 lbs: 2-high maximum stack
• Bottom Box Under 750 lbs: 3-high maximum stack

Safety protocols require:

• Safety factor of 3 for all corrugated containers
• Column stacking patterns for optimal corner-to-corner strength
• No pyramid stacking permitted
• Edge protectors at every vertical corner and horizontal edge
• Solid fiberboard protection: 2" × 2" × 0.160" minimum thickness

Material Handling Compatibility

Forklift and pallet jack compatibility is crucial—fork penetration can compromise container integrity and cause costly product loss. Manufacturing specifications typically display weight ratings, with most full flap bottom boxes supporting 1,100 to 2,500 pounds depending on wall construction.

Partial Flap Bottom Gaylord Boxes: Cost-Effective Solutions

Economic Engineering Design

Partial flap bottom Gaylord boxes optimize cost-effectiveness while maintaining operational efficiency. Their flaps extend partially across the bottom, typically reaching the center point without overlapping, requiring slip sheets—thin, solid fiber platforms costing approximately $1.00 each that serve as the primary bottom support surface.

Construction Specifications

Partial flap bottom containers (modified bottoms) typically feature:

• Four or five-wall construction
• Partial flaps with locking tabs on the bottom
• Secure setup once assembled
• Octagonal shape for enhanced stacking strength
• Space efficiency in transportation
• Lower cost compared to full flap alternatives

Material efficiency: This design uses significantly less corrugated material than full flaps, resulting in reduced manufacturing costs and lighter container weight.

Slip Sheet Technology and Economic Advantages

Material Composition and Environmental Benefits

Slip sheets for partial flap bottom configurations are typically manufactured from recycled paperboard or plastic, making them an environmentally conscious choice for warehousing, transport, and storage operations.

Protection benefits include:

• Shield against pallet nails, dirt, and splinters
• Enhanced safety when using reclaimed wood pallets
• Price range: $0.85 to $1.55
• Cost consideration: Corrugated slip sheets cost more due to lumber shortages; fiber board currently offers superior value

Material Performance Comparison

Corrugated Slip Sheets:

• Material Source: Single-wall corrugated board (ECT 32)
• Features: Standard protection level

Fiber Board Slip Sheets:

• Material Source: Packaging materials (soda cartons)
• Features: Clay coating, superior puncture resistance, enhanced moisture protection

Performance advantage: Fiber board provides enhanced protection against protruding nails or splinters from pallets, with clay coating delivering improved puncture resistance and moisture protection.

Economic Analysis

Current market pricing demonstrates clear cost savings for partial flap bottom configurations:

• Used units: $14.86 to $18.75
• New full flap alternatives: Significantly higher cost
• Five-wall Gaylord boxes with partial/slip sheet bottoms offer optimal reuse value

Cost advantages stem from:

• Reduced material usage
• Enhanced manufacturing efficiency
• Simplified assembly processes
• Reduced storage space for empty containers

Comprehensive Market Pricing Analysis

Market Evolution and Stabilization

The Gaylord box market has experienced significant pricing evolution, with 2024 representing a stabilization period following years of volatility. The market endured dramatic fluctuations during 2021-2022 pandemic years, when supply chain disruptions and surging demand caused price spikes as businesses scrambled for packaging solutions.

2023 brought oversupply conditions leading to price corrections, but 2024 marked a turning point as excess inventory was absorbed and demand for higher-grade boxes increased.

Regional Pricing Dynamics

Significant price variations exist across the United States for used Gaylord boxes, influenced by local supply and demand, transportation costs, and regional industrial activity:

• Massachusetts: $16.75 average price (+127.89% change)
• California: $18.50 (premium pricing region)
• Arkansas: $16.20 (competitive regional value)
• Washington: $2.25 (-79.26% change)

Market Projections for 2025

Expected pricing trends indicate moderate increases:

• Grade A: $17.00 - $18.50 projected range
• Grade B: $14.00 - $15.50 projected range
• Grade C: $11.50 - $12.50 projected range

Bulk ordering advantages:

• Most suppliers offer quantity discounts
• Semi truck capacity: 400-600 standard boxes (up to 900 smaller units)
• Standard storage: 25 boxes banded per pallet, stackable 2-high
• Transportation logistics significantly impact delivered pricing

Industry-Specific Applications

Manufacturing Sector Requirements

Application landscapes vary significantly across industries, with each sector having specific requirements influencing the choice between full flap and partial flap bottom designs:

Automotive Components

• Preference: Full flap bottom containers
• Reason: Heavy metal parts with irregular shapes
• Benefits: Superior load distribution and puncture resistance

Electronics Manufacturing

• Preference: Partial flap designs
• Reason: Lighter components with cost optimization priorities
• Benefits: Economic efficiency for high-volume operations

Plastic Resin Storage

• Primary use: Partial flap bottom containers
• Applications: Resin pellets and lightweight bulk materials
• Advantages: Octagonal shape for weight distribution and cost efficiency

Food and Agricultural Industries

Food and agricultural sectors face unique challenges affecting container selection beyond cost and performance considerations:

Full flap bottom advantages for food-grade applications:

• Enhanced contamination protection
• Improved strength during cold storage and transport
• Complete bottom closure prevents pest and contaminant infiltration
• Compliance support for food safety regulations and quality standards

Agricultural preferences:

• Partial flap containers for grains, seeds, and similar products
• Benefits: Lightweight design and cost savings for operational efficiency

Recycling and Waste Management Applications

Industry Preferences and Economics

Recycling and waste management operations favor partial flap bottom designs due to both cost savings and material characteristics. Lightweight recycled materials benefit from adequate support while maintaining cost-effectiveness essential for industry margins and processing requirements.

Popular applications for two-ply Gaylord boxes:

• Paper recycling operations
• General waste collection
• Electronics recycling programs
• Lightweight metal collection for incineration
• Donation collection (versatile waste stream management)
• Sawdust and wood scrap handling

Sustainability benefits:

• Slip sheet components are fully recyclable
• Supports comprehensive sustainability initiatives
• Self-supporting when filled
• Eco-friendly, reusable, and recyclable design
• Appeals to cost-conscious and environmentally aware operations

Environmental Sustainability and Circular Economy Impact

Industry Environmental Progress

Environmental impact assessments reveal substantial sustainability benefits extending beyond packaging to support broader circular economy objectives. The corrugated packaging industry has achieved remarkable progress in reducing environmental impact.

Significant Achievement: From 2006 to 2020, life cycle assessments demonstrated that US corrugated boxes reduced greenhouse gas emissions by 50%.

Additional Environmental Gains:

• 13% reduction in ozone depletion
• 13% decrease in energy consumption
• 18% reduction in water usage
• 41% decrease in acid rain impact

Recycling excellence:

• 93.6% recycling rate for corrugated boxes
• 52% average recycled content in new boxes
• Box fiber reuse: Up to 7 times through recycling system
• Material flow: 53% of recycled containers become new containerboard
• Additional applications: 5.5 million tons for other paper products, 10+ million tons exported

Reusability and Lifecycle Benefits

Reusable Gaylord containers provide substantial environmental benefits by reducing dependence on single-use packaging materials. These durable, fully recyclable containers eliminate landfill waste concerns.

Economic and environmental advantages:

• Studies demonstrate packaging cost reductions over 70% with reusable Gaylord systems
• Environmental benefits through waste reduction and resource efficiency
• Full flap bottom containers offer superior reusability for industrial applications
• Multiple use cycles offset higher initial costs through reduced replacement frequency

Advanced design features enhancing sustainability:

• Reinforced corner construction
• Specialized closure systems
• Integrated handling features
• Improved operational efficiency and cost control

Advanced Selection Criteria and Implementation

Technical Decision Framework

Effective selection criteria for Gaylord box configurations require comprehensive evaluation of critical factors ensuring optimal container selection for diverse applications.

Load Characteristics (Primary Technical Factors):

• Total weight capacity
• Weight distribution patterns
• Product density considerations
• Supply chain handling requirements

Engineering recommendations:

• Full flap bottom construction for concentrated loads, irregular shapes, or point loading applications
• Enhanced support and failure prevention through superior design

Compliance and Safety Standards

Container footprint regulations specify:

• Maximum footprint: 39.25" × 47.25" (no pallet overhang permitted)
• Total height limit: 50" maximum when placed on pallet
• Dynamic load capacity: 3× static load rating
• Stacking strength: Support up to 100" stacking height

Cost optimization strategies should evaluate:

• Purchase price vs. total cost of ownership
• Reusability factors and damage prevention
• Operational efficiency impacts
• Partial flap designs: Optimal for high turnover, single-use applications
• Full flap containers: Superior long-term value for reuse operations

Quality Control and Assembly Best Practices

Implementation Excellence

Successful Gaylord box program implementation requires focus on:

• Standardized assembly procedures
• Comprehensive quality control measures
• Operational protocol development

Full Flap Bottom Assembly Requirements:

• Careful overlapping and taping procedures for optimal load distribution
• Prevention of premature failure through proper assembly
• Full flap coverage verification and appropriate tape application
• Minimum taping: Two strips in crossing pattern for optimal results

Partial Flap Bottom with Slip Sheets:

• Specialized quality control focusing on slip sheet placement and flap alignment
• Proper support distribution verification
• Training programs emphasizing correct slip sheet placement and inspection procedures
• Shift prevention during loading to maintain container integrity

Material Selection Guidelines

Slip sheet inventory management requires careful coordination between container delivery and slip sheet availability to prevent production delays.

Application-specific slip sheet selection:

• Moisture-sensitive products: Clay-coated sheets for enhanced moisture resistance
• Pallet-sensitive items: Fiber board protection against protruding nails and splinters
• Reclaimed wood pallet operations: Fiber board slip sheets for enhanced safety

Future Market Trends and Technological Development

Innovation and Market Evolution

Gaylord box technology continues evolving to address emerging supply chain management requirements, with innovations focusing on enhanced sustainability, improved performance, and application-specific solutions.

Advanced Container Design Features:

• Enhanced corner reinforcement for improved durability
• Specialized closure systems for specific applications
• Integrated handling features for operational efficiency

Performance benefits: Even marginal container performance improvements yield significant operational benefits in high-volume operations.

Market Outlook and Strategic Considerations

2025 market projections indicate continued price stabilization with moderate increases expected across all quality grades. Improved inventory management and consistent demand for high-quality containers reflect a maturing market that has successfully navigated pandemic-related volatility.

Strategic recommendations for businesses:

• Anticipate price increases across all container categories
• Consider bulk purchasing and long-term supply contracts for cost mitigation
• Evaluate sustainability initiatives driving innovation in container design and materials

Future Development Areas:

• Increased recycled content integration
• Enhanced recyclability features
• Reduced environmental impact through design optimization
• Advanced slip sheet technologies maintaining performance while enhancing environmental benefits
• Digital tracking and smart packaging for improved inventory management and supply chain visibility

The future promises container designs optimizing material usage while maintaining structural integrity, with potential integration of digital tracking and smart packaging technologies to enhance inventory management and supply chain visibility.
