Loading wooden pallets into a 53-foot dry van looks easy, but your method matters. The choice you make affects both costs and efficiency. Changing the orientation and stack pattern of 48x40 pallets impacts how many fit in a truck. You could ship either 520 or 660 pallets per load. This guide shares effective loading strategies for standard wooden pallets. It covers safety, weight distribution, and best industry practices.

Understanding Trailer Dimensions and Capacity

Before you plan your pallet loading strategy, know the size of a standard 53-foot dry van trailer:

  • Interior length: 52’ (636 inches)
  • Interior width: 98”-101”
  • Interior height: 108”-110”
  • Door opening width: 93”
  • Door opening height: 105”
  • Total cubic capacity: Approximately 4,050 cubic feet
  • Maximum cargo weight: Typically 45,000 lbs

These dimensions affect how many pallets you can fit. They also decide how to arrange them for better efficiency and to meet legal weight limits.

Pallet Types and Design Considerations

This guide mainly covers standard 48”x40” GMA (Grocery Manufacturers Association) pallets. But knowing about different pallet types can improve your loading strategy.

Entry Design Types

  • Two-way pallets have forklift openings on just two sides. The other sides have smaller openings.
  • Stringer pallets have forklift openings on just two sides. They also include middle stringer boards for added support.
  • Four-way pallets: Forklift openings on all four sides, providing maximum maneuverability
  • Block pallets: They have forklift openings on all four sides. Solid wood blocks at the ends of the stringers support heavier loads.

The pallet design affects handling efficiency. It also determines how closely pallets fit in the trailer.

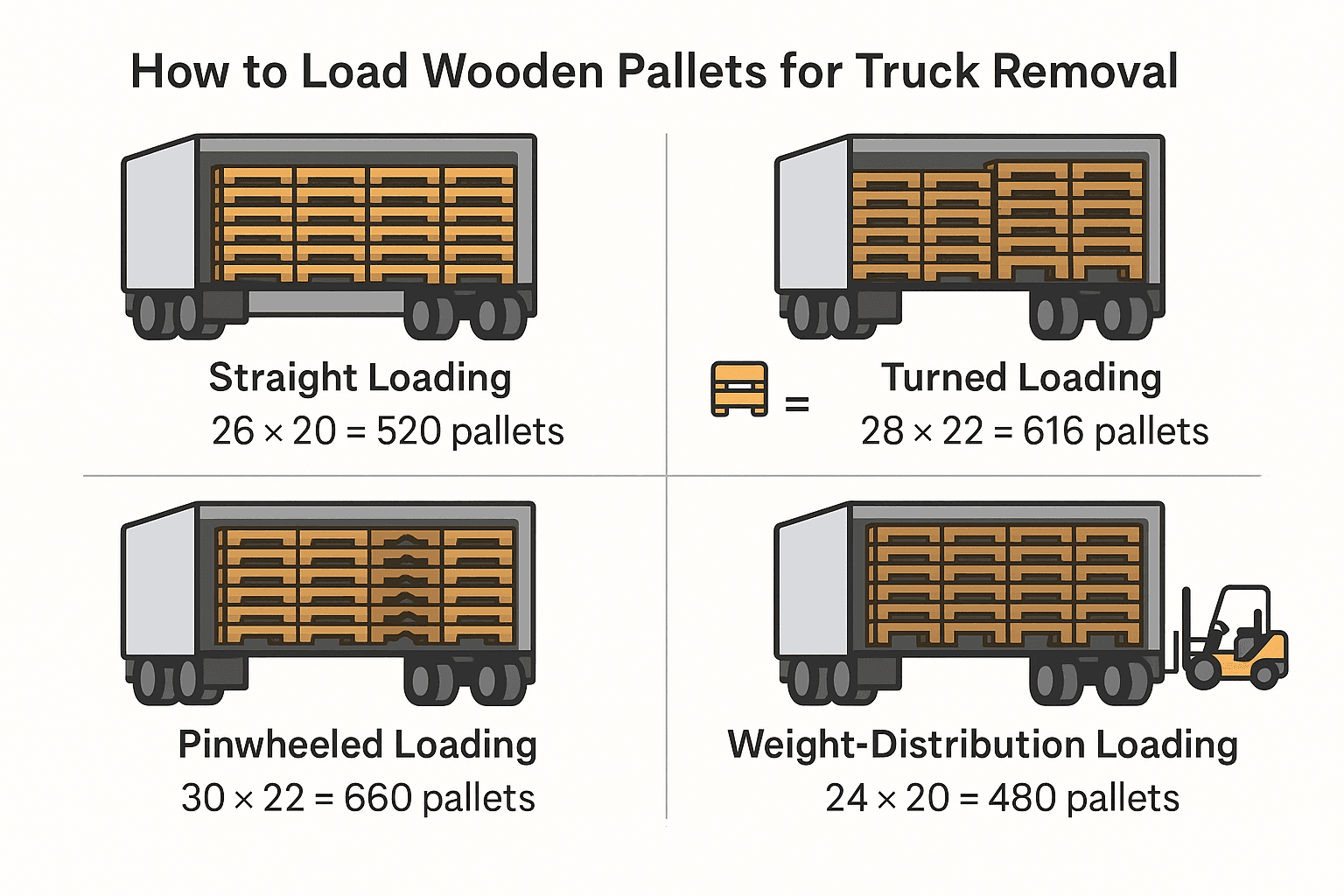

Standard Pallet Load Configurations

Straight Loading

  • Orientation: 48-inch side faces the trailer doors
  • Typical configuration: 26 stacks × 20 pallets high
  • Example: 26 × 20 = 520 pallets
  • Range: 520 to 572 pallets (if stacked 22 high)
  • Pros: Easy to execute, stable in transit, simplifies loading/unloading
  • Cons: Leaves unused trailer width, less efficient use of space
  • Industry standard: 26 standard GMA pallets loaded straight in a 53-foot trailer

Turned Loading (Side Method)

  • Orientation: 40-inch side faces the trailer doors (pallets turned sideways)
  • Typical configuration: 28 to 30 stacks × 20 to 22 pallets high
  • Example: 28 × 22 = 616 pallets
  • Range: 560 to 600+ pallets
  • Pros: Most optimized use of trailer width, increases capacity by ~15%
  • Cons: Takes longer to load/unload, potentially less stable without proper securing
  • Industry standard: Can fit up to 30 pallets using this method in a 53-foot trailer

Pinwheeled Loading

  • Orientation: Alternates between straight and turned rows (one pallet straight, next sideways)
  • Typical configuration: 28 to 30 stacks × 20 to 22 pallets high
  • Example: 30 × 22 = 660 pallets
  • Range: 600 to 660 pallets
  • Pros: Excellent stability as pallets support each other, high capacity utilization
  • Cons: Requires careful planning, longer loading times, skilled forklift operation
  • Industry note: A 53-foot trailer usually holds around 28 pallets. This setup offers better load stability.

Weight-Distribution Loading

  • Orientation: Custom layout based on axle load limits
  • Example: 24 stacks × 20 pallets = 480 pallets
  • Range: Variable
  • Purpose: Prioritizes legal axle weight distribution over maximum count
  • Usage: Essential when approaching a trailer’s 45,000 lb weight limit

Optimizing Space Through Strategic Stacking

Beyond basic configurations, several techniques can further maximize trailer utilization:

Vertical Space Utilization

The average maximum height in a 53-foot trailer is around 110 inches. Using vertical stacking strategies can double or even triple shipments in one trip. This, however, depends on the product’s weight and how well it’s packaged.

Stacking Patterns

Different stacking patterns can significantly impact stability and space efficiency:

  • Block pattern: Arranges pallets in uniform rows and columns to maximize storage efficiency
  • Split block pattern: This divides storage space into sections. It helps organize different product categories.
  • Pinwheel pattern: Lets you load pallets at 90-degree angles. This improves packing tightness and boosts stability.

Technology Assistance

Third-party load planning software calculates the best cargo layout. It considers package size, weight, and other factors. Some software solutions improve space utilization by up to 30% over manual planning.

Why Many Warehouses Load Inefficiently

Most non-specialized warehouses typically:

  • Stack only 20 pallets high (under-utilizing vertical space)
  • Use either straight or basic turned loading patterns
  • Load 22 to 26 stacks total
  • Example: 24 stacks × 20 high = 480 pallets

This means each truck holds just 440 to 520 pallets. That’s much lower than the 660 pallets possible with optimized layouts. This leads to higher freight costs per pallet and wasted space.

Industry Optimization Example

The best trailer loading setup for some big retailers, like Costco, is 30 pallets in a single layer. When double stacked, it can hold 60 pallets with optimized patterns.

OSHA Regulations for Pallet Stacking

Adhering to OSHA regulations ensures workplace safety and regulatory compliance:

Key OSHA Guidelines

  • Ensure pallets are durable enough for intended loads
  • Inspect pallets for damage before stacking
  • Position pallets stably to prevent collapse
  • Avoid keeping stacked pallets in high-traffic areas
  • Stack pallets up to 15 feet high (depending on product type)
  • Do not stack products on only one side of the pallet
  • Securely tie or wrap boxed items using cross-ties or shrink wrap
  • Store pallets in areas free from protruding nails, holes, splinters, or loose boards

Handling Odd-Sized Pallets

Although standard 48x40 pallets are most common, many facilities handle non-standard sizes:

Common Non-Standard Sizes and Capacity

  • 42” × 42” (Telecom, Paint): 30 pallets in 53’ trailer
  • 48” × 48” (Drums): 26 pallets
  • 40” × 40” (Dairy): 30 pallets
  • 48” × 45” (Automotive): 26 or 28 turned
  • 44” × 44” (Drums, Chemical): 28 pallets
  • 36” × 36” (Beverage): 34 pallets
  • 48” × 36” (Beverage, Shingles): 26 or 34 turned

Best Practices for Odd Sizes

  • Keep each size grouped in its own load zone
  • Don’t mix odd sizes with 48x40s in the same stack
  • Measure and plan the floor layout before loading
  • Expect lower capacity with non-standard sizes

Weight Distribution Principles

Proper weight distribution is critical for road safety and legal compliance:

Axle Weight Considerations

  • Single axle dry vans typically have about 20,000 pounds capacity placed above the axle
  • Tandem-axle trailers have 34,000 pounds capacity
  • Weight must be distributed evenly across all vehicle axles to prevent instability

Calculating Proper Distribution

Determine the total weight and center of gravity of the combined load

Consider the distance from the center of gravity to the front axle

Distribute weight so that neither axle exceeds its legal limit

Remember that improper weight distribution can affect vehicle handling and braking performance

Loading Tips and Safety Considerations

Before You Load

  • Inspect all pallets for broken boards or exposed nails
  • Keep stack heights consistent within a load
  • Strap or wrap uneven stacks for security
  • Confirm weight if approaching trailer maximum capacity
  • Perform forklift checks: Inspect lifts for tire condition, brakes, forks, and mast functionality

Forklift Technique

  • Approach stacks squarely
  • Level forks and fully insert into each stack
  • Move slowly during tight placement, especially for pinwheeled loads
  • Approach stacking areas slowly and straight
  • Use spotting guides for high stacks

Safe Pallet Stacking Methods

  • Choose undamaged pallets
  • Place heaviest items on the bottom to keep center of gravity low
  • Stack evenly with balanced weight distribution
  • Respect height and weight limitations
  • Secure loads with shrink wrap or banding to prevent shifting during transport

Final Checklist Before Sealing the Trailer

  • Are stacks uniform at 20 to 22 high?
  • Is the loading orientation consistent (unless pinwheeled)?
  • Are all stacks secure and damage-free?
  • Are there no gaps between stacks that could allow shifting?
  • Do trailer doors close smoothly without contact or pressure?
  • Is weight properly distributed across axles?
  • Is the total weight within legal limits?
  • Are all OSHA safety regulations followed?
