Gaylord Box Sizes & Dimensions: Standard Sizes, Weight & Capacity

Gaylord Box Sizes and Dimensions

The most common Gaylord box measures 48" x 40" x 36" — the same footprint as a standard GMA pallet. But that's just the standard: Gaylord boxes come in a wide range of sizes, from compact cube styles to tall, heavy-duty containers, with weight capacities running from a few hundred pounds to several thousand.

If you're trying to figure out which size you need — or how much a Gaylord weighs, empty or full — this guide lays out the standard dimensions, the most common size options, and the two very different numbers people mean when they ask "how much does a Gaylord box weigh."

Below you'll find the standard size, a full table of common dimensions, and a clear breakdown of box weight versus weight capacity — two figures that often get confused.

Standard Gaylord Box Size

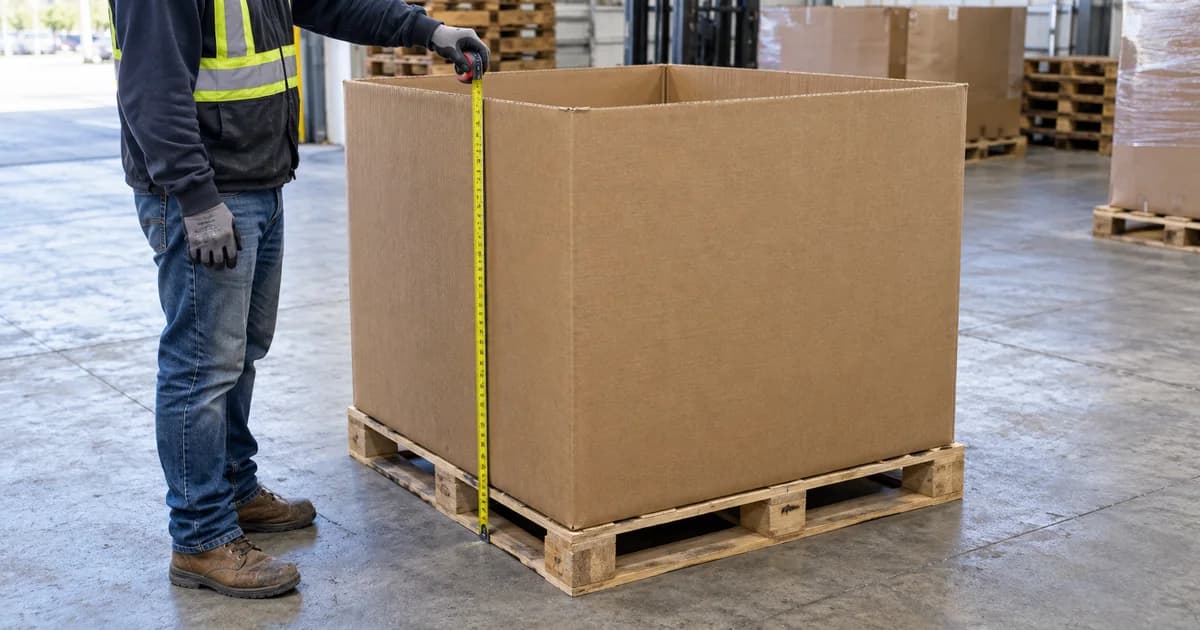

The standard Gaylord box measures 48" x 40" x 36" (length x width x height). That footprint is no accident — 48" x 40" is the exact size of a standard GMA pallet, the most widely used pallet in North America. Because the box matches the pallet beneath it, there's no wasted space and no overhang, which keeps loads stable and makes them easy to stack and transport.

This size hits a practical sweet spot. It holds roughly 40 cubic feet of material, moves easily by forklift or pallet jack, and fits efficiently into truck trailers and warehouse racking. For most bulk storage and shipping jobs, it's the default choice — which is why "48 x 40 x 36" is what most people picture when they think of a Gaylord.

The 36" height is the most common, but it's also where you'll see the most variation. Shorter boxes (around 28"–34") are used for denser, heavier material that would be too heavy to lift at full height, while taller boxes (42"–48" and up) suit bulky, lightweight goods that fill space before they hit a weight limit. The footprint tends to stay the same; the height is what flexes to fit the load.

Common Gaylord Box Dimensions

While 48" x 40" x 36" is the standard, Gaylord boxes come in many sizes to suit different loads. Here are the most common dimensions you'll come across:

These are the most common configurations, not a fixed catalog — many suppliers offer custom sizes, and exact dimensions vary slightly from one manufacturer to the next. Some sellers also use their own model codes (for example, "D," "Mini D," "E," or "EH") to label standard sizes, so it's always worth confirming the actual measurements rather than relying on a size name alone.

Rectangular vs. Octagonal Dimensions

Most Gaylord boxes are rectangular, matching the pallet footprint exactly. Octagonal Gaylords (sometimes called "octabins") have angled corners, so their footprint is slightly smaller — often around 46" x 38" — while still sitting on a standard 48" x 40" or 48" x 48" pallet. Those angled corners aren't just cosmetic: they help the box resist bulging under pressure, which can improve stacking strength and extend the box's service life.

How Much Does a Gaylord Box Weigh? (Empty Weight)

When people ask how much a Gaylord box weighs, they usually mean one of two very different things: how much the empty box itself weighs, or how much weight it can hold. This section covers the first — the box's own weight, often called its tare weight. Capacity is covered in the next section.

An empty corrugated Gaylord box is surprisingly light for its size. A standard 48" x 40" x 36" double-wall box typically weighs around 15 pounds, though this varies with size and wall count. Thinner two-wall boxes weigh a little less; heavier triple-, four-, and five-wall boxes weigh more, since each added wall means more corrugated board. Plastic and specialty Gaylords are heavier again — octagonal octabins, for example, commonly run heavier (roughly 35–80 lb empty) because of their reinforced construction.

Tare weight matters for one practical reason: shipping. Freight is billed by total weight, so to know the net weight of your goods, you subtract the box's tare weight from the total. For a single box the difference is small, but across a full truckload of Gaylords it adds up — which is why the empty weight is worth knowing, not just the capacity.

Gaylord Box Weight Capacity

The second meaning of "how much does a Gaylord weigh" is capacity — how much the box can safely hold. And here's the key point: capacity depends on wall count, not on box size. A box's dimensions tell you how much space you have; the number of walls tells you how much weight those walls can support.

As a rough guide, here's how capacity scales with wall count:

These figures are approximate. Actual capacity depends on the box's construction quality (measured by things like edge crush strength), its shape, how the load sits inside, and whether the box is being stacked. Always check the rated capacity from your specific supplier rather than assuming from wall count alone.

A note on octagonal boxes. Octagonal Gaylords ("octabins") spread the load across more contact points, which suppliers agree improves bulge resistance, stacking strength, and service life. Their effect on maximum weight capacity is less settled — some suppliers rate an octagon the same as a rectangular box of equal wall count, while others rate triple-wall octagons well above a comparable rectangular box. Where the two shapes clearly differ is durability under repeated stacking. For reference, a triple-wall 46" x 38" x 36" octagon is commonly rated around 1,300 lb, and a 5-wall octagon can reach 5,000 lb — but always confirm the rating for the specific box with your supplier.

One thing that does not change capacity is height. A taller box doesn't hold more weight — it holds more volume. Weight capacity is set by the walls and the base, so a tall two-wall box and a short two-wall box carry about the same load; the tall one just has room for more lightweight material.

For a full breakdown of how each wall type is built and what it's suited for, see our guide to Gaylord box types.

How to Choose the Right Gaylord Box Size

Picking the right Gaylord comes down to matching the box to your load. A few questions make the choice straightforward:

Start with what you're storing. Is your material dense and heavy, or bulky and light? Dense material (metal parts, wet goods, dense pellets) is better in a shorter box — you'll hit the weight limit before you fill the space, and a lower box is easier and safer to load. Bulky, lightweight material (foam, textiles, empty containers) suits a taller box that gives you more volume before weight becomes an issue.

Match the weight to wall count. Once you know how heavy a full box will be, choose the wall count that comfortably covers it — with some margin. Don't load a two-wall box to its limit; step up to triple- or four-wall for heavy material so the box holds up through handling and stacking.

Check pallet and trailer fit. The standard 48" x 40" footprint fits standard pallets and loads efficiently into trailers. If you're optimizing how many boxes fit per truckload, footprint and height together determine your count — so it's worth planning both around your shipping setup.

Factor in reuse. If you plan to reuse or resell the boxes, a sturdier multi-wall or plastic Gaylord costs more upfront but survives more trips, lowering your cost per use over time.

When in doubt, size the footprint to your pallet and the wall count to your weight — those two choices solve most of the decision.

Frequently Asked Questions

How big is a Gaylord box? The most common size is 48" x 40" x 36", matching a standard GMA pallet. Sizes range from compact 36" cubes to tall boxes over 48" high.

What is the standard Gaylord box size? 48" x 40" x 36" is the standard. The 48" x 40" footprint matches a standard pallet, while the height varies to suit different loads.

How much does a Gaylord box weigh? An empty standard double-wall Gaylord weighs around 15 pounds. Heavier multi-wall and plastic boxes weigh more. This is the box's own (tare) weight, separate from how much it can hold.

How much weight can a Gaylord box hold? It depends on wall count, not size: roughly 500 lb for two-wall, 1,000–1,500 lb for triple-wall, and up to 2,500–3,000+ lb for five-wall boxes.

Do octagonal Gaylord boxes hold more weight? They stack better and last longer than rectangular boxes of the same wall count, thanks to more even load distribution. Their effect on maximum weight rating varies by supplier, so check the specific box's rating. For reference, a triple-wall octagon is often rated around 1,300 lb.

Does a taller Gaylord box hold more weight? No. Height adds volume, not weight capacity. Capacity is set by the walls and base, so a taller box holds more material by space, not by weight.

The Bottom Line

The standard Gaylord box measures 48" x 40" x 36" to match a standard pallet, but sizes range from short cube styles to tall heavy-duty containers. When it comes to weight, remember the two numbers are different things: an empty Gaylord weighs around 15 pounds (its tare weight), while how much it can hold depends on wall count — from about 500 pounds for a two-wall box to 2,500 pounds or more for a five-wall.

The simplest way to choose: size the footprint to your pallet, and the wall count to your load. To go further, explore our related guides:

• What Is a Gaylord Box? — definition, uses, and the story behind the name

• Types of Gaylord Boxes — wall counts, materials, and shapes explained

• How to Recycle Gaylord Boxes — reuse, resale, and recycling, step by step
