Types of Gaylord Boxes
Gaylord boxes come in a wide range of types, but they all vary along three main lines: how many walls they have, what they're made of, and their shape. Wall count sets how much weight the box can carry, material determines durability and moisture resistance, and shape affects stacking strength and how the box handles pressure.
Understanding these three axes makes it much easier to pick the right box — and to make sense of the terms suppliers use, like "triple-wall," "octabin," or "high-performance tote." This guide breaks down each type, explains a few terms that often get confused, and helps you match the right Gaylord to your load.
Gaylord Box Wall Types (Wall Count)
The single biggest difference between Gaylord boxes is wall count — how many layers of corrugated board make up the box. More walls mean more strength, so wall count is the main thing that determines how much weight a box can safely hold.
Before the breakdown, one point of confusion worth clearing up: "wall" and "ply" don't always mean the same thing. In everyday use, people say "2-wall," "2-ply," and "double-wall" to mean the same box. But in technical specs, engineers sometimes count every layer — the fluted layers and the flat liners between and around them. That's why you'll occasionally see a triple-wall box described as "7-ply": three fluted layers plus four liners. It's the same box, just counted a different way. For practical purposes, focus on the number of walls (fluted layers), which is what suppliers usually mean.
2-Wall (Double-Wall) Gaylord Boxes
The lightest-duty option, made of two fluted layers. Double-wall Gaylords suit lighter loads — textiles, plastic parts, packaging, paper goods, and other bulky-but-not-heavy material. They're the most economical choice and are often used where the box will see only one or a few trips.
3-Wall (Triple-Wall / Tri-Wall) Gaylord Boxes
The most common all-purpose type, made of three fluted layers. "Triple-wall" and "tri-wall" mean the same thing. These handle medium loads — resins, rubber, dry goods, produce — and stand up to repeated reuse, which makes them the workhorse of the Gaylord world.
4-Wall and 5-Wall Gaylord Boxes
The heavy-duty end of the range, with four or five fluted layers. These are built for the heaviest and highest-risk loads — scrap metal, auto parts, dense material, and anything that needs maximum structural strength. They cost more but hold the most and last the longest under demanding conditions.
How Wall Count Affects Weight Capacity
The pattern is simple: each added wall increases how much weight the box can carry, from a few hundred pounds for a double-wall box up to several thousand for a five-wall. Height doesn't change capacity — the walls and base do. For the full capacity-by-wall-count breakdown, with typical weight ratings for each, see our guide to Gaylord box sizes and weight.
Gaylord Box Materials
After wall count, the next big variable is what the box is made of. Most Gaylords are corrugated cardboard, but several other materials suit specific jobs.
Corrugated Cardboard (Most Common)
The default material for the vast majority of Gaylord boxes. Corrugated is affordable, lightweight, recyclable, and available in every wall count from double to five-wall, so it covers everything from light to very heavy loads. Its main limitation is moisture — plain corrugated needs to stay dry — but for most dry-goods applications it's the practical, economical choice.
Plastic Gaylord Boxes
Made from rigid or corrugated plastic, these trade higher upfront cost for durability and moisture resistance. Plastic Gaylords are built for repeated, long-term reuse and handle wet or washdown environments that would destroy cardboard. They're a common choice for closed-loop systems where the same boxes cycle through many times.
Metal and Wood Gaylord Boxes
The heavy-industrial option. Metal or wood bulk containers are used where loads are extremely heavy, sharp, or abrasive, and where maximum durability matters more than cost or weight. They're less common than cardboard or plastic and tend to be reserved for demanding, specialized settings.
Insulated and Food-Grade Gaylord Boxes
Specialty corrugated boxes fitted with liners or coatings for particular contents. Insulated versions help hold temperature for cold-chain goods, while food-grade boxes use approved liners for direct contact with food products. These are corrugated boxes adapted with an added barrier rather than a separate material class.
Gaylord Box Shapes and Formats
Beyond walls and material, Gaylord boxes come in a few different shapes and specialty formats built for particular kinds of loads.

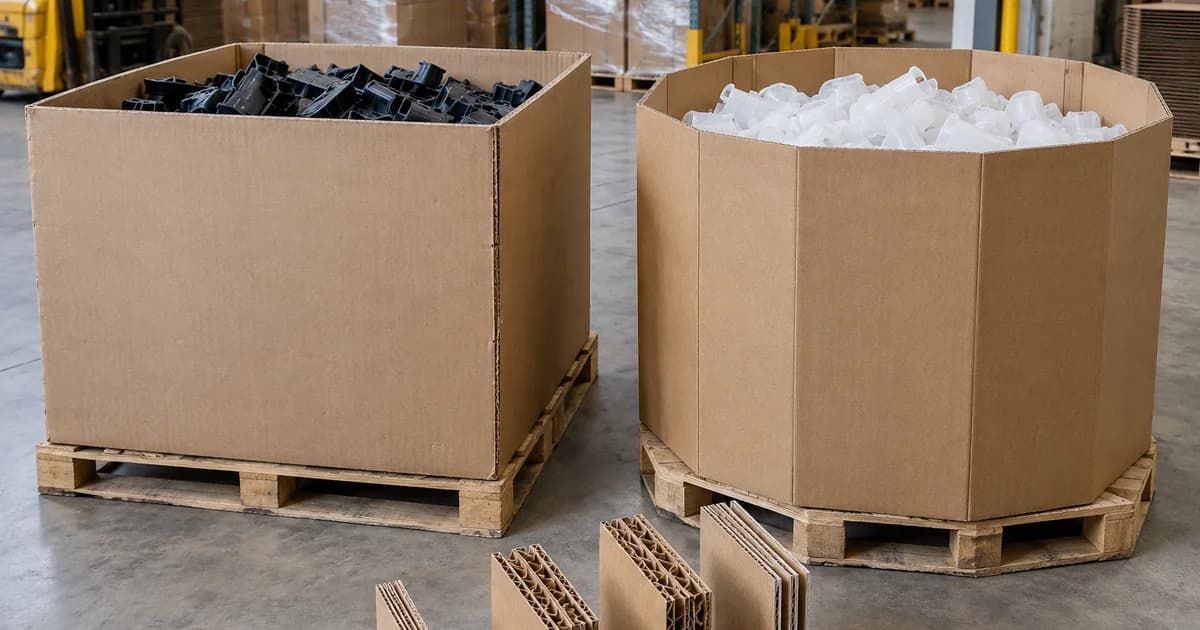

Rectangular vs. Octagonal (Octabin)
Most Gaylords are rectangular, matching the pallet footprint and making efficient use of square storage space. Octagonal Gaylords — often called octabins — have eight sides, with angled corners that give them a slightly smaller footprint on the same pallet.
That eight-sided shape isn't just cosmetic. The angled corners distribute pressure more evenly and resist bulging, which suppliers consistently point to as giving octabins better stacking strength and a longer service life than rectangular boxes of the same wall count. They're especially favored for flowable materials — powders, pellets, grains, and resins — where even wall pressure matters.
One thing to note: sources disagree on whether the octagonal shape actually raises a box's maximum weight capacity, or mainly improves durability and stacking at the same capacity. Either way, the practical strengths — bulge resistance, stackability, and longevity — are well established. Match wall count to your weight, and choose octagonal when stacking, flowables, or reuse life are priorities.
High-Performance Totes (HPT / HPT-41)
High-performance totes are a premium, heavy-duty format — typically five-wall, rectangular boxes with full-flap tops and bottoms, engineered for demanding, high-reuse applications. The "HPT-41" you'll see refers to a specific height; other heights exist in the same family. HPTs are often made from fresh (rather than recycled) board for maximum strength and consistency, which makes them more expensive but very durable.
"Gaylord" vs. "Tri-Wall": Format vs. Construction
Here's a distinction that trips up even experienced buyers: "Gaylord" and "tri-wall" describe two different things, so a box can be both at once.
"Gaylord" is a format — a large, pallet-sized bulk box. It tells you the box's role and rough size, but nothing about how its walls are built.
"Tri-wall" is a construction — a box made of three corrugated layers. It tells you the wall count, but nothing about the box's size or role.
So a triple-wall Gaylord is simply a pallet-sized bulk box that happens to have three walls. You can also have a double-wall Gaylord or a five-wall Gaylord — all Gaylords, differing in construction. And "tri-wall" construction shows up in plenty of boxes that aren't Gaylords at all. The two words answer different questions: Gaylord answers "what kind of box?" and tri-wall answers "how is it built?" Keeping them separate makes supplier listings much easier to read.
How to Choose the Right Type of Gaylord Box
Picking the right Gaylord means working through the same three axes this guide is built around. A few questions get you there:
How heavy is your load? This sets your wall count. Light material is fine in a double-wall box; medium loads call for triple-wall; heavy or dense material needs four- or five-wall. When in doubt, size up — a box loaded near its limit fails sooner than one with margin to spare. For typical weight ratings by wall count, see our guide to sizes and weight capacity.
What are you putting in it, and where? This points to material. Dry goods in a dry environment suit standard corrugated. Wet or washdown settings, or long-term reuse, favor plastic. Temperature- or food-sensitive contents need insulated or food-grade boxes. Heavy, sharp, or abrasive loads may call for metal or wood.
How will you handle and store it? This guides shape. If you stack boxes high, store them long-term, or handle flowable material like powders and pellets, an octagonal octabin brings better stacking strength and durability. For general square-space storage, rectangular is simplest and most space-efficient.
How many trips does it need to last? This weighs cost against reuse. Single-use or short-run jobs don't need premium construction; high-reuse operations pay off with sturdier multi-wall, plastic, or high-performance boxes that survive many cycles and lower your cost per use.
Put simply: wall count for weight, material for contents and environment, shape for handling, and construction quality for how many times you need the box to work. Match those four and you've got the right Gaylord.
Frequently Asked Questions
What is a triple-wall Gaylord box? A Gaylord box made of three layers of corrugated board. "Triple-wall" and "tri-wall" mean the same thing. It's the most common all-purpose type, good for medium loads and repeated reuse.
What's the difference between double-wall and triple-wall? The number of corrugated layers. Double-wall (two layers) suits lighter loads and is more economical; triple-wall (three layers) carries more weight and holds up better to reuse.
Is a Gaylord the same as a tri-wall box? Not exactly. "Gaylord" describes the format — a pallet-sized bulk box — while "tri-wall" describes the construction — three corrugated layers. A box can be both: a triple-wall Gaylord.
Are plastic Gaylord boxes reusable? Yes. Plastic Gaylords are made for repeated, long-term reuse and resist moisture, which makes them a good fit for wet environments and closed-loop systems, though they cost more upfront.
What is an HPT-41 Gaylord box? A high-performance tote — a heavy-duty, typically five-wall box with full-flap tops and bottoms, built for demanding, high-reuse jobs. "41" refers to the box's height.
Do octagonal Gaylord boxes hold more weight? They stack better, resist bulging, and last longer than rectangular boxes of the same wall count. Whether the shape raises the maximum weight rating varies by supplier, so confirm the specific box's rating.
The Bottom Line
Gaylord boxes vary along three axes: wall count, which sets how much weight they carry (from double-wall for light loads to five-wall for the heaviest); material, from standard corrugated to plastic, metal, or food-grade; and shape, whether space-efficient rectangular or stronger-stacking octagonal. Two terms worth keeping straight: "wall" and "ply" usually mean the same thing in practice, and "Gaylord" (a format) is different from "tri-wall" (a construction) — so a box can be a triple-wall Gaylord.
